【Material Selection】
The essence of Jian Zhan lies in its high-iron-content clay and glaze, requiring 8%-13% iron concentration—a natural barrier that made replication by other kilns during the Song Dynasty nearly impossible. Modern studies confirm that the unique “iron body” structure of Jian Zhan originates from the iron-rich clay and glaze minerals of Shuiji Town in Jianyang, which, when fired at 1300°C, form its iconic material foundation. Northern kiln masters, despite their skill, often failed to replicate due to insufficient iron content in local minerals.
【Material Preparation】
Selected ores are mechanically crushed and sieved through a 120-mesh filter. The clay undergoes fermentation in slurry tanks, while the glaze is activated in specialized pools. A critical step called Chen Fu (aging process) involves storing the clay in a dark, temperature- and humidity-controlled chamber for 180 days. This natural maturation allows microorganisms to decompose organic matter, enhancing plasticity.
【Shaping Techniques】
The aged clay is hand-kneaded using the “three kneading and nine pounding” (san rou jiu da) method, employing Tai Chi-inspired motions to eliminate air bubbles, achieving a density of 2.6g/cm³. Shaping combines traditional wheel-throwing and mold-casting, adhering to Song Dynasty standards. The shallow circular foot design requires three precise knife trims. Artisans employ “jump knife” (tiao dao) techniques to carve 0.3mm-thick string patterns on the bisque, optimizing glaze flow during firing.
【Bisque Firing】
Unglazed bisques undergo pre-firing at 800°C to increase mechanical strength to 28MPa. Modern kilns use infrared flaw detection to eliminate hidden cracks, boosting yield by 40% compared to ancient methods.
【Glaze Formulation】
The ancient “one mineral, two ash” (yi kuang er hui) recipe combines red iron ore from Shuiji Town with seven-year-aged pine wood ash in a 1:1.618 golden ratio. The glaze’s iron content is strictly controlled at 13%±0.5%, ground into a thixotropic non-Newtonian fluid with particle sizes under 15μm.
【Glazing Artistry】
The signature Half-Glaze Technique demands precision. Using bamboo ladles at a 45° angle, artisans apply glaze layers of 1.2-1.5mm thickness, with a margin of error under ±0.5mm. Modern laser positioning systems achieve 99% accuracy. Too thin, and crystal growth is stifled; too thick, glaze drips ruin the piece.
【Kiln Mastery】
Alumina powder lines the kiln shelves to prevent sticking. Firing occurs in three phases:
- Oxidation (200-800°C): 8-hour gradual heating.
- Reduction (1250-1330°C): Pine resin creates a strong reducing atmosphere.
- Cooling: 24-hour controlled cooldown.
Kiln masters monitor “three critical controls”:
- CO concentration (12-15%) during reduction.
- Temperature stability (±5°C tolerance).
- 20-30-minute crystal formation window.
Experts adjust fuel intake within 0.5 seconds by observing flame colors through peepholes.
【Final Selection】
Post-firing, pieces undergo “three screenings and nine inspections”:
- Sound testing for hidden cracks.
- Visual inspection of glaze patterns.
- Light transmittance examination of the body.

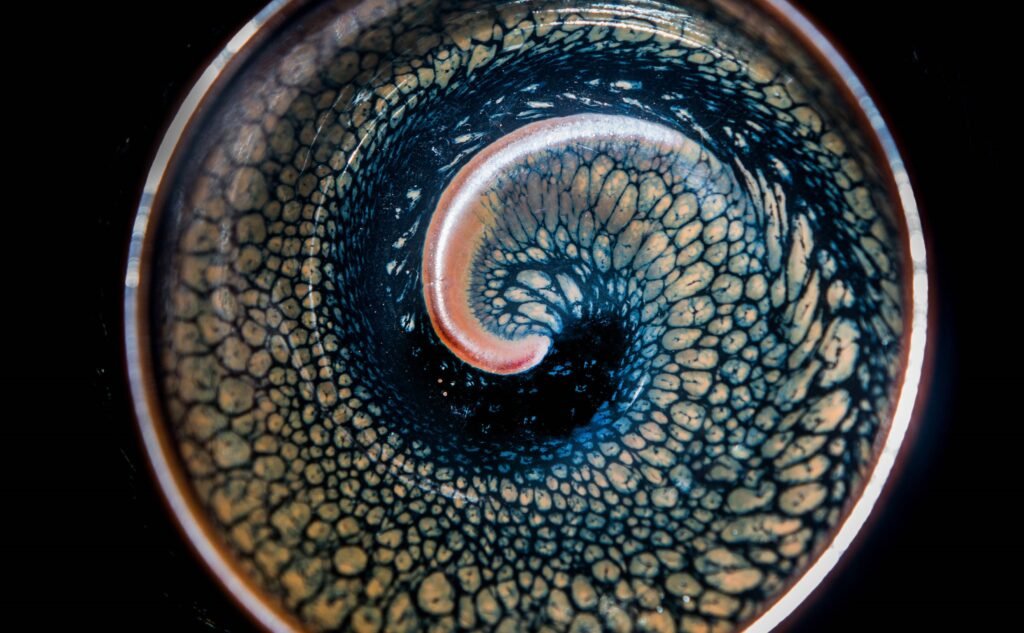

Top-grade Jian Zhan must meet:
- Hare’s fur streaks >3cm, evenly distributed.
- Oil-drop crystals 0.5-2mm in diameter, 3D-structured.
- Iron-rust-colored body.
- Rim gold lines <1mm wide.
Modern X-ray fluorescence spectrometers analyze crystal structures at the nanoscale. With a final pass rate below 3%, this 1,000-year-old craft continues to embody the pinnacle of ceramic artistry.
